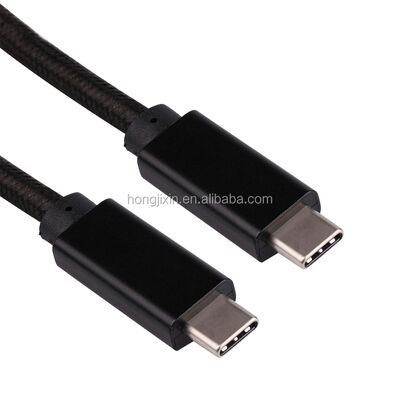

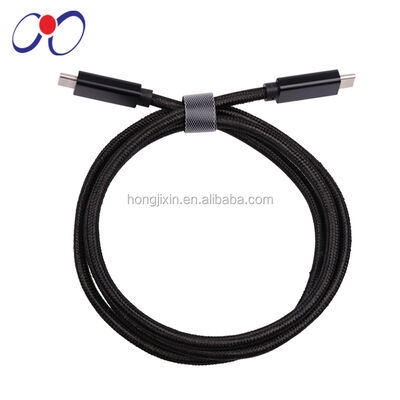

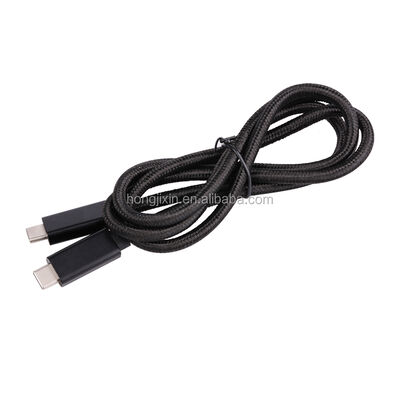

USB3.0 Nylon Braided Metal Case 3A Fast Delivery 5Gbps Data Cable Type C Cable
| Brand Name: | HJX |
| Model Number: | USB type C to type C cable |
| MOQ: | 200 pieces |
| Price: | $4 / piece |
Electrical Test:
1. 100% open short & miss wire test
2. Insulation Resistance: DC300V 0.01s 10Mohm Min
3. Conductor Resistance: 5 ohm Max
Specification:
1. Product name: USBType C 3.1 to Type C 3.1 cable L=1200mm White
2. Material:
Connector: both sides are Type C molding side, black.
USB C type Plug Terminal Contact 30u" Insulation Black, Seamless stretch shell, one side with IC.
Overmold: 73A TPE Black.
Cable: USB3.1(32AWG*1P+EAM)*4+(32AWG*1P+AL)+32AWG*4C+21AWG*1C+AEB+EPE+black Nylon braid, Jacket OD4.8mm, Black.
3. Current: 5A 20V
Feature:
This Type C male to Type C male cable is USB 3.1 version, reversible design, support all Android devices to charge and sync with fast charging.
1. Supporting USB double side to insert
2. Higher transmission speed to 10Gbps
3. Supporting charge and sync for New Mac book Air and many other andriod devices
4. Backward compatible with USB 3.0 and USB 2.0.
5. New interface design, size about 8.3mm x 2.4mm, slim interface.
6. Can be used to transmit DisplayPort signal, supporting 4K UHD image transmission.
7. It can provide a maximum power transmission of 100W.
8. Power output capability: standard cable 3A, interface 5A.
9. Better electromagnetic interference (EMI) and radio frequency interference (RFI) mitigation characteristics.
10. Products are RoHS and Reach compliant. Factory are ISO9001 and ISO14001 certificated.
| Material | Copper conductor + Alumium braid + PVC jacket+ Nylon braid | |
| Function | For high speed data transfer or mobile charging | |
| Conductor | Standard Tinned Copper | |
| Colors | as picture or other color for choice | |
| Warranty | 1 year | |
| OEM & ODM | yes, accept | |
| Certification | RoHS and Reach, UL | |
| Free Sample | yes, but freight cost on customer | |
