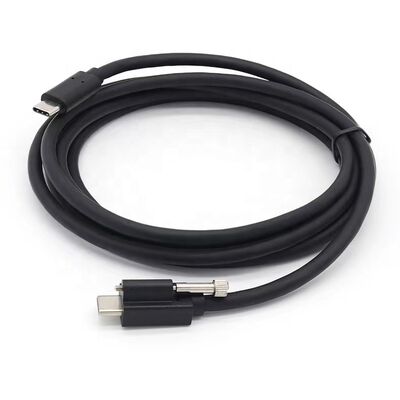

USB3.1 Gen 2 Type C with Screw Locking to USB-C 5A Cable with 10Gbps Data Sync and 100W Power Delivery for Industry Camera
| Brand Name: | Hongjixin |
| Model Number: | Industry Camera cable |
| MOQ: | 500 pieces |
| Price: | $1.80-2 / piece |
![]()
USB3.1 Gen 2 type C with Screw Locking to USB-C 5A Cable with 10Gbps Data Sync and 100W Power Delivery for Industry Camera
1. Specification:
| Type | USB 3.1 Gen2 type C with screw locking usb cable |
| Wire | USB CABLE[30#*1P+D+AL+MY]*4+32#*1P+32#*1P+32#*4C+23AWG*2C+AB, OD:5.0±0.15mm, Black PVC, 80â, VW-1 |
| Wire OD | OD 5.0mm |
| Length | L=1m |
| Color | Black |
| Function | 5A Charging+10G Data Transfer |
| Connector 1 | type C male |
| Connector 2 | type C male with screw |
About this product:
1. [Single screw locking] the single M2 screw locking USB-C connector provides a reliable connection, avoiding the interruption of signal transmission caused by the inadvertent pulling out of the connector
2. [100W (20V/5A)] Build-in E-Marker chip, which makes this USB Type C to C cable strong enough to support Max 5 Amps current and 100 watts power delivery, support QC 3.0 and USB PD Fast Charging
3. [10Gbps super speed] support SuperSpeed data transmission (send or receive high-definition movies in just 5 seconds)
4. [Support video and audio transfer] The USB-C to USB-C cable also supports full HD 4k video output up to 3840x2160 60HZ, suitable for professional video production and playback equipment
5. [Compatibility] This USB C cable is designed for industrial equipment and is also compatible with ordinary smartphones, tablets and laptops with Type-C interface

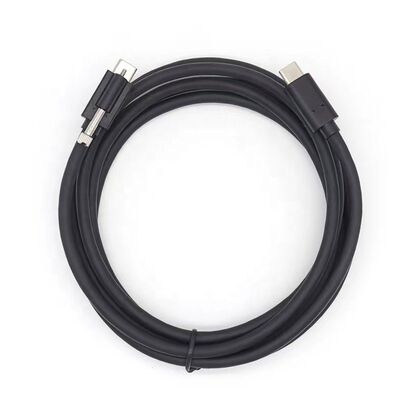

Single Screw Locking USB C to USB C Cable
This cable design with screw locking solves the following problems:
1. The cable is suspended and the USB C connector is easily pulled out by the pulling force of the cable
2. The devices connected to the USB C connectors at both ends move, causing the USB C plug to fall off
3. There are high requirements for the stability of cable data transmission
4. The USB C cable swings while working, and the connector bears all the force alone, resulting in damage
5. Suitable for: cameras, stage equipment, high-speed hard drives, video equipment, etc.
![]()
2. Electrical test:
1).100% short , open , miswire test
2).Conduct resistance : 1Ω Max
3).Insulator resistance : 20MΩ Min
4).Dielectric test : DC 300V
![]()
![]()
Shenzhen Hongjixin Plastic & Electronics Co., Ltd(HJX Plastic & Electronics Co., Ltd) was established in 2003. The company covers an area of more than 6,500 square meters and employs more than 400 employees. The company established the second plant in Hubei in 2009. The first phase of the factory has more than 500 employees, covering an area of more than 30,000 square meters. The second phase factory have put into operation in 2016, it is covering an area of more than 45000 square meters. It has been put into production and has 2,000 employees. The company is a senior enterprise integrating product development, mold design, mold manufacturing, stamping, injection molding, extrusion, assembly, testing, sales and service. It specializes in producing all kinds of computer data lines, signal lines, LCD HD data. Wire, computer connectors and peripheral connectors, and undertake mold design and production of plastic hardware products, the main products are USB, (USB3.0, USB3.1, TYPE C) cable, Ethernet cable, Telecom cable, DC cable and wire harness cables, the company is currently involved in the field of automotive and medical wire, OEM / ODM manufacturing of connectors and cables according to customer requirements. Welcome customer at home and abroad to discuss cooperation and develop business together.
![]()
![]()
![]()
![]()
1.Are you manufacturer or trading company?
A:We are Professional Electronics Products Manufacturer for USB Cables, Lan cables, Wireharness, Audio cable, HDMI and SATA cables And Others with EOM / ODM Services.
2.Can I get samples?
A:Yes,we can offer samples
3.Can our logo be printed on your products?
A:Yes.
4.What is your delivery time?
A: 3~5 days for sample order,2~3 weeks for bulk orders.
5.What is your MOQ?
A: 100PCS
6.If there is defective product,how do you deal with it?
A:We will reissue it in the next order.
7.How do you control the quality?
A: We make inspection three times before delivery.
8.How to guarantee after sale?
A : We supply 1 year products warranty. If the item is found to be defective in warranty, please contact us as soon sa possible, so that we can help to solve the problem at fastes rate : send back to our factory for repairing, or we send new one for you.
9.How to proceed an order for products?
A. 1. let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
![]()
