OEM 2.0 Single Mode Simplex Duplex 3.0 LC SC FC APC PC OM3 Optical Fiber Optic Patch Cord Communication Cables
Detail Information
Product Description
OEM 2.0 Single Mode Simplex Duplex 3.0 LC SC FC APC PC OM3 Optical Fiber Optic Patch Cord Communication Cables

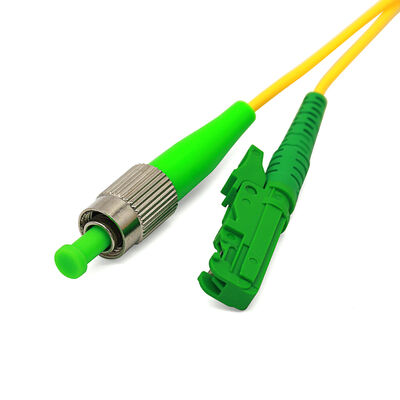

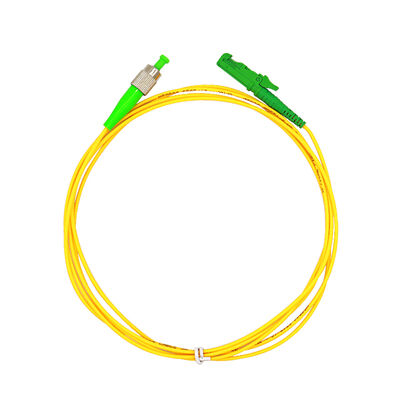

This is a single-mode APC fiber patch cord with different interfaces:
- Left connector:
FC/APCtype, with metal threaded locking structure, green boot identifies APC polished end face, matched with yellow single-mode fiber pigtail - Right connector:
E2000/APCtype, green square interface with buckle, also adopts APC oblique polishing process, the outer jacket of pigtail is standard yellow for single-mode fiber
Features
This APC fiber patch cord has typical telecom-grade transmission characteristics:
- Insertion Loss: Typical value ≤0.2dB, maximum value no more than 0.3dB, low signal transmission attenuation
- Return Loss: ≥60dB, much higher than ordinary UPC/PC end face patch cords, which can effectively suppress the interference of reflected light to signals
- Durability: Plug life ≥1000 times, interchangeability deviation ≤0.2dB, excellent long-term use stability
- Operating Temperature: Can work normally in a wide temperature range from -40℃ to +80℃, suitable for various harsh computer room environments
Typical Application
With the feature of high return loss, it is especially suitable for scenarios with strict requirements on reflection indicators:
- Fiber CATV, radio frequency optical transmission systems
- Telecom backbone networks, ODF distribution frame interconnection
- High-precision optical test instruments, WDM equipment connection
- 5G edge computing nodes, optical communication core link deployment
