CAT5E RJ45 8P8C to RJ45 8P8C UTP 24AWG Bare Copper Ethernet Cable
Detail Information
Product Description

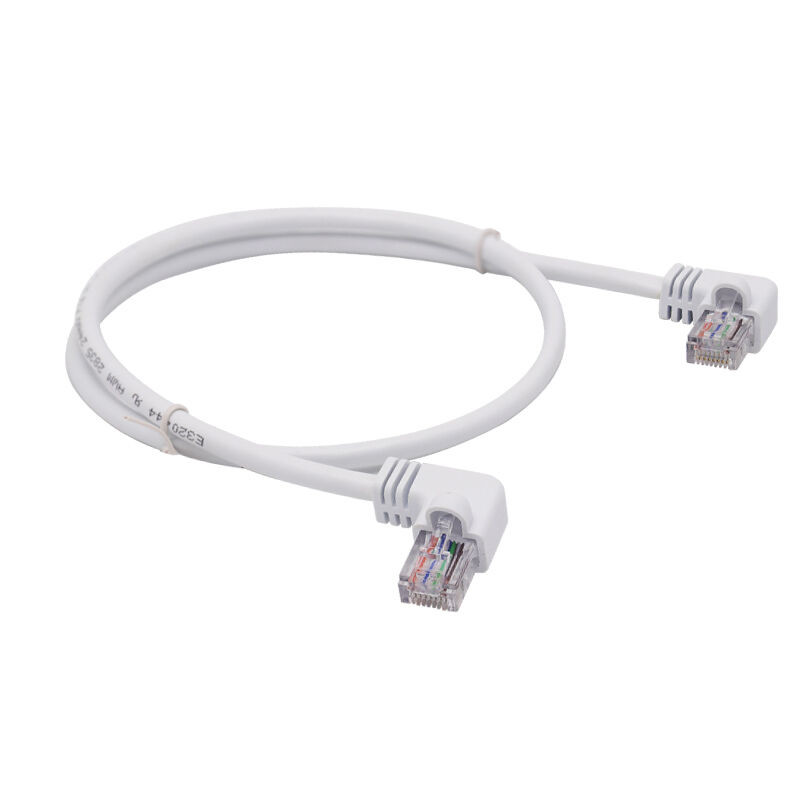

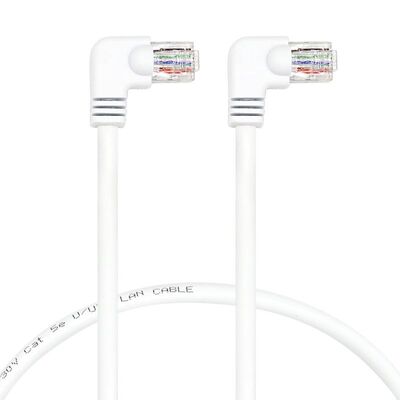

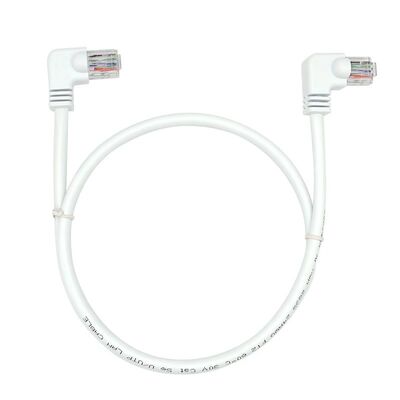

Ethernet patch cord with 90° elbow RJ45 connectors on both ends, designed for narrow space wiring scenarios
Cable: CAT5E 4P'24 AWG(7/0.20BC),PVC JACKET, O.D.=5.5mm, 60°C, WHITE

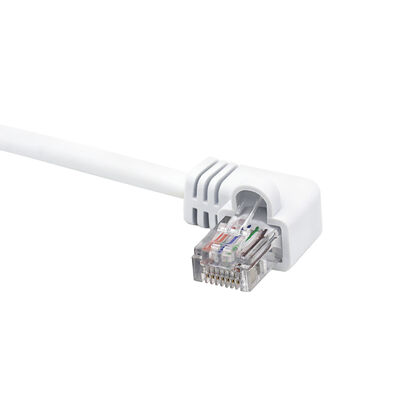

Connector: RJ45 8P8C PLUG, CONTACT:GOLD PLATED 15u"
Boot: LDPE
Boot: PVC WHITE SNAGLESS
Wire: CABLE WITH NO OVERALL SHIELD AND 4 UNSHIELDED STRANDEDTWISTED PAIR; ALL MATERIALS ARE RoHS COMPLIANT TIA/EIA 568B.2, CM, 4PR CABLE, AWM 2835. 24AWG.60°C 30V.FT2
- Transmission Performance
- Bandwidth: 100MHz
- Supports 1000BASE-T Gigabit Ethernet, stable transmission up to 100 meters, backward compatible with 100Mbps Fast Ethernet and 10Mbps legacy Ethernet
- Key transmission metrics at 100MHz:
- Maximum attenuation: 22 dB/100m
- Minimum Return Loss (RL): 20.1 dB
- Minimum Near-End Crosstalk (NEXT): 35.3 dB
- Minimum Power Sum NEXT (PSNEXT): 32.3 dB
- Special Design Features

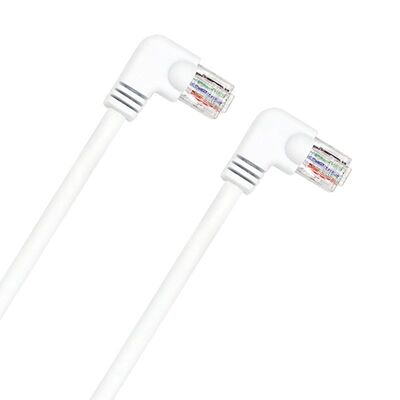

- Both ends adopt 90° right-angle RJ45 connectors, which avoids excessive bending damage to the cable in compact wiring environments such as cabinets and narrow equipment gaps, and makes the cabling neater. The gold plating thickness of the connector pins reaches 50μ, which ensures stable contact and reduces signal loss
- Applicable scenarios
This type of UTP (Unshielded Twisted Pair) cable with enhanced five-category performance is widely used in home networking, connection of office desktop devices, and jumper connections for small cabinets, etc., in scenarios with low electromagnetic interference. With its high cost-effectiveness and flexible deployment, it is currently one of the mainstream choices for gigabit network cabling.
