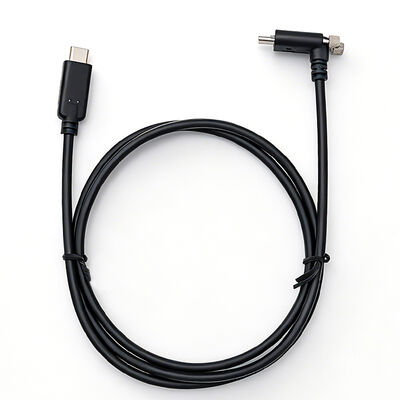

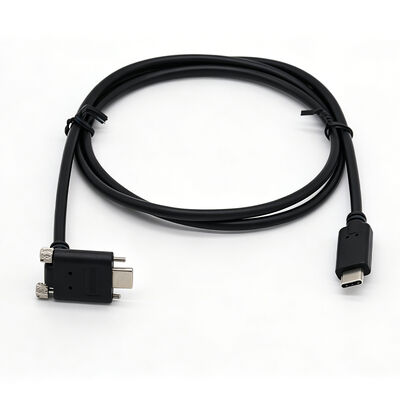

90 Degree Down Angled USB Type-C Male to Male Cable with Dual M2 Secure Locking Screw USB-C Assembly
| Brand Name: | Hongjixin |
| Model Number: | C type up/down cable |
| MOQ: | 500 pieces |
| Price: | $0.80-1.20 / piece |
Detail Information
Place of Origin:
Guangdong, China (Mainland)
Connectors:
USB 2.0 Connector
Function:
3A Fast Charging
Material:
PVC
Type:
Usb Cable, Type-c Usb Cable, Fast Charging Cable
Usb Type:
Type-C
Conductor:
Tinned Copper
Jacket:
PVC, TPE
Private Mold:
Yes
Shielding:
Braid
Use:
Mobile Phone, Multimedia, For Android, Power Bank
Connector 2:
2.0 Type C Male
Style:
90 Degree Up/down Type C Cable
Function:
Charging+Data Transfer
Connector 1:
90 Degree Type C Male Connector
Jacket:
PVC
Color:
Black/Customized
Core:
Copper
Length:
0.5m /customized
Package:
1PC/bag
Product Description
90 Degree Down Angled USB Type-C Male to Male Cable with Dual M2 Secure Locking Screw USB-C Assembly
1. Specification:
| Type | USB 2.0 Type-C Male Down Angled Dual Screw to Straight type C Male cable |
| Wire | USB2.0 Cable 28AWG*1P+28AWG*1C+24AWG*2C PVC jacket Black |
| Wire OD | OD 4.0mm |
| Length | L=0.5m or customized |
| Color | Black |
| Function | Charging+Data Transfer |
| Connector 1 | Screw Lock 90 degree angled type C male |
| Connector 2 | Straight type C Male |
2. Electrical test:
- 100% short , open , miswire test
- Conduct resistance : 1Ω Max
- Insulator resistance : 20MΩ Min
- Dielectric test : DC 300V
Product Features
- Screw Locking Mechanism: Features a single or dual screw locking design to ensure a secure connection and prevent accidental disconnection caused by vibration or mechanical shock.
- Robust Power Delivery (PD): Supports fast charging and power supply up to 60W 3A, capable of powering high-performance industrial modules and devices.
- Multiple Angled Orientations: Available in various configurations including Straight, Up-angled, Down-angled, and Side-angled to optimize cable routing in tight spaces.
- Industrial-Grade Durability: Designed with high-flexibility (suitable for drag chain applications), oil-resistant, and flame-retardant materials (PVC/PUR) to withstand harsh environments.
Industry & Device Applications
- Machine Vision: The primary application for high-speed industrial cameras (e.g., Basler, FLIR, IDS, Cognex) requiring stable 24/7 image data transmission.
- Robotics & Factory Automation: Integrated into robotic arms, pick-and-place machines, and automated production lines where continuous motion and vibration are present.
- Medical Technology: Used in diagnostic imaging equipment, surgical monitors, and ultrasound machines that require reliable, non-failing connections.
- Automotive Testing: Applied in vehicle diagnostic systems, ADAS (Advanced Driver Assistance Systems) testing, and in-car infotainment development.
- IT & Telecommunications: Used for secure panel-mount extensions in server racks, data centers, and network communication hubs.
- AR/VR/MR Systems: Provides a stable, tethered link for professional-grade virtual reality headsets and motion-tracking sensors.
- Test & Measurement: Essential for lab instruments like oscilloscopes, data loggers, and spectrum analyzers where port stability is crucial for accurate readings.
- Digital Signage & Kiosks: Used in outdoor displays and self-service terminals to prevent cable loosening due to public interaction or environmental factors.
