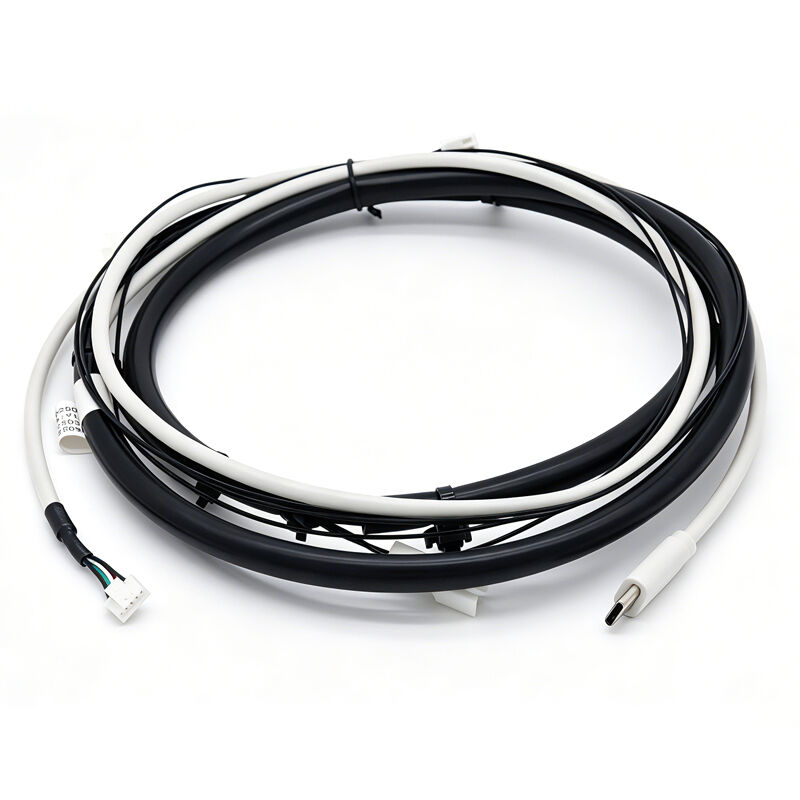

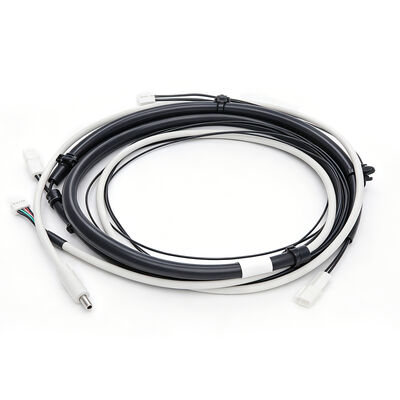

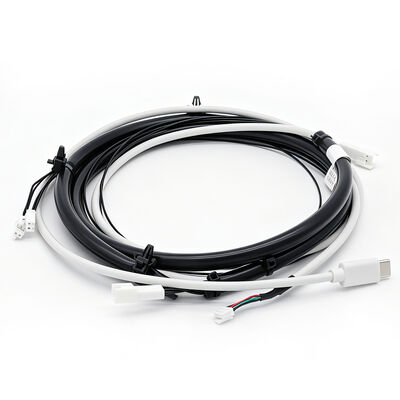

Camera component connection cable harness for the steam and oven appliance
Detail Information
Product Description
OEM/ODM Harness cable for the steam and oven appliance
Specification:
Connector 1: USB2.0 Type C Male connector
Connector 2: PH1.5 M/HSG 1*5P White with latch
Connector 3: PH2.0MM 1*2P/F with latch HSG White
Connector 4: 2.5/M HSG 1*2P White with latch
Connector 5: PH2.54 F/HSG 1*2P White JST:XARR-02VF
Connector 6: PH2.54 F/HSG 1*2P White JST:XARR-02VF
Wire 1: UL2725 USB2.0 28AWG*1P+26AWG*2C+AEB Gray
PVC(冷灰3C)OD:3.8
Wire 2: UL1332 28#TC (7/0.127), OD:1.05mm, VW-1
Wire to be wrapped with OD4.0*5.0mm Silicone tube.
Length: 1500mm
