Stock for Sata 15Pin Female Crimp Type Connector
| Brand Name: | HJX |
| Model Number: | SATA 15P female connector |
| MOQ: | 1000 pieces |
| Price: | $0.03-0.20 / piece |

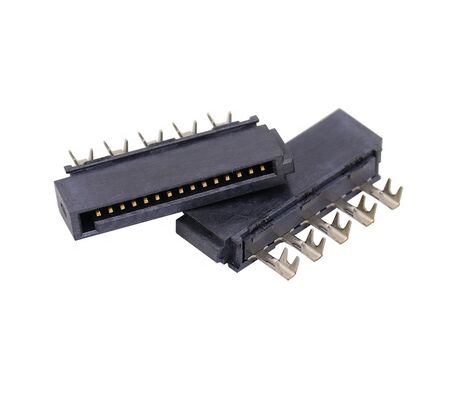

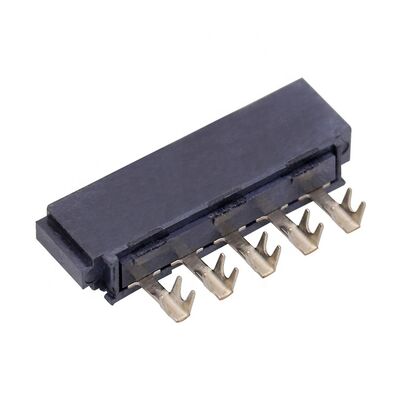

a. SATA 15P Female Socket crimp type connector
b. For cable end
c. Housing: LCP, PBT
d. Terminal: Phosphor Bronze, Gold Plated
e. Pitch1.27mm
Mechanical
a. Insertion Force: 45N max
b. Withdrawal Force: 10N min
Specification
a. Current Rating: 1.5A
b. Contact Resistance: 30 milliohms max.
c. Insulation resistance: 1000 megohms min.
d. Dielectric withstanding voltage: 500 VAC.
e. Operating temp: -55~105

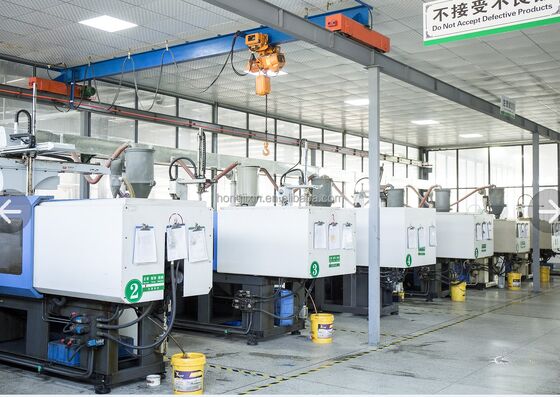

Shenzhen Hongjixin Plastic & Electonics Co. Ltd. was estabished in 2003. It is a proessional connector and cabies assembliy manufacturer. Aopication field covers IT, automotive, medical, industrial automation, Netcom, unmanned aerial vehicles, robots, etc. The company is a senior enterprise integrating productdevelopment, mold design, metal stamping, ire extrusion, njecion molding, assembly, sales, and service. Main products are USB TYPE C, USB3.0 USB2.0, SATA, Ethernet cables, Telephone cables, Wire haress, HDTV cables and connectors, can be customized by 0EM / 0DM. The company has more than 1500 emplovees. It has two manufacturing bases n Shenzhen and Hubei, and have ofices both in Hongkong and Taiwan to serve customers nearby. The connectors are 100% assembled automatically. It has absolute advantages over competitors in terms of quality, delivery time and cost.
1.Are you manufacturer or trading company?
A:We are Professional Electronics Products Manufacturer for USB Cables, Lan cables, Wireharness, Audio cable, HDMI and SATA cables And Others with EOM / ODM Services.
2.Can I get samples?
A:Yes,we can offer samples
3.Can our logo be printed on your products?
A:Yes.
4.What is your delivery time?
A: 3~5 days for sample order,2~3 weeks for bulk orders.
5.What is your MOQ?
A: 100PCS
6.If there is defective product,how do you deal with it?
A:We will reissue it in the next order.
7.How do you control the quality?
A: We make inspection three times before delivery.
8.How to guarantee after sale?
A : We supply 1 year products warranty. If the item is found to be defective in warranty, please contact us as soon sa possible, so that we can help to solve the problem at fastes rate : send back to our factory for repairing, or we send new one for you.
9.How to proceed an order for products?
A. 1. let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
