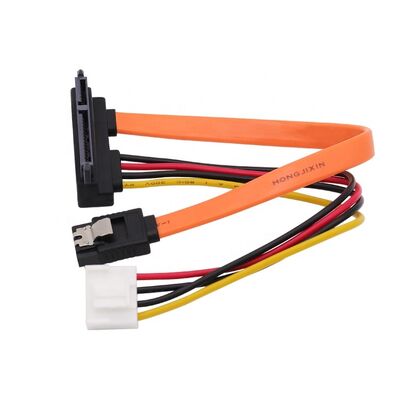

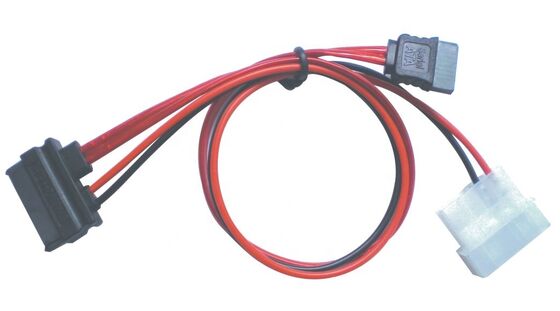

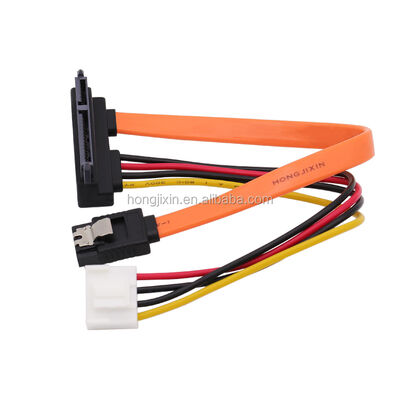

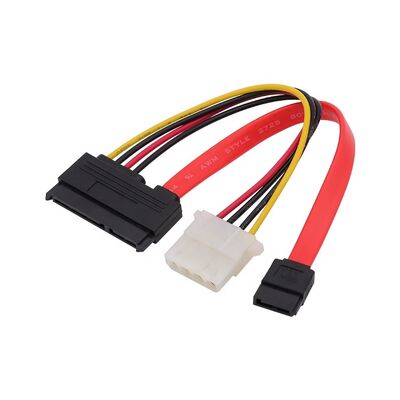

HJX HJX-CS015 30cm SATA 22Pin to PH3.96mm 4P & SATA 7P Power/Data Transfer Cable for Computer HDD
| Brand Name: | HJX |
| Model Number: | HJX-CS015 |
| MOQ: | 500 pieces |
| Price: | $0.66-0.79 / piece |
Material
1. Connector: SATA 7+15P female to SATA 7P and 4P Power
2. Housing: PBT, LCP
3. Terminal: Phosphor Bronze
4. Signal Wire: UL2725 26 / 28 /30AWG, UL1007 18AWG Tinned Copper
Electrical
1. Hi-Pot Test: DC300V
2. Insulation Resistance: 10M Ohms (Min)
3. Contactor Resistance: 1 Ohms (Max)
4. 100% Open Short and Miss Wire Test
Mechanic
1. Insertion Force: 45N Max
2. Withdrawal Force: 15N Min
3. Operating Temperature: -25 to 85 Celsius degree
