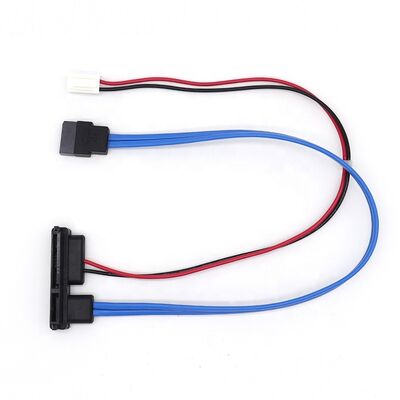

SATA 15+7 Pin Right Angle Type/Data to PH3.0 2Pin 600 MB/sec IDE Power SATA Power Data Cable
| Brand Name: | HJX |
| Model Number: | Sata 22p cable angle type |
| MOQ: | 500 pieces |
| Price: | $0.75-1.17 / piece |
1. SATA 7 +15P right angle type cable
2. 7+15P to 7P & PH3.0 2Pin Power
3. Housing: PBT, LCP
4. Terminal: Phosphor Bronze
5. Signal Wire: UL2725 /UL21149 26 / 28 AWG, Tinned Copper
6. Power Cable: UL1007/UL1061 18 / 20 AWG/22AWG, Tinned Copper
Electrical
1. Hi-Pot Test: DC300V
2. Insulation Resistance: 10M Ohms (Min)
3. Contactor Resistance: 1 Ohms (Max)
4. 100% Open Short and Miss Wire Test
Mechanic
1. Insertion Force: 45N Max
2. Withdrawal Force: 15N Min
3. Operating Temperature: -25 to 85 Celsius degree,
Shenzhen Hongjixin Plastic & Electronics Co., Ltd(HJX Plastic & Electronics Co., Ltd) was established in 2003, located in Maozhou Industrial Park, Shapuwei Village, Songgang Town, close to the Guangzhou-Shenzhen Expressway, near the Songgang subway station, with convenient transportation. The company covers an area of more than 6,500 square meters and employs more than 400 employees. The company established the second plant in Hubei in 2009. The first phase of the factory has more than 500 employees, covering an area of more than 30,000 square meters. The second phase factory have put into operation in 2016, it is covering an area of more than 45000 square meters. It has been put into production and has 2,000 employees. The company is a senior enterprise integrating product development, mold design, mold manufacturing, stamping, injection molding, extrusion, assembly, testing, sales and service. It specializes in producing all kinds of computer data lines, signal lines, LCD HD data. Wire, computer connectors and peripheral connectors, and undertake mold design and production of plastic hardware products, the main products are HDMI, DVI, SATA, ESATA, ATA, IDC, USB, (USB3.0, USB3.1, TYPE C) , RCA, RGB, SCSI connector and finished product cable, the company is currently involved in the field of automotive and medical wire, OEM / ODM manufacturing of connectors and cables according to customer requirements.
1.Are you manufacturer or trading company?
A:We are Professional Electronics Products Manufacturer for USB Cables, Lan cables, Wireharness, Audio cable, HDMI and SATA cables And Others with EOM / ODM Services.
2.Can I get samples?
A:Yes,we can offer samples
3.Can our logo be printed on your products?
A:Yes.
4.What is your delivery time?
A: 3~5 days for sample order,2~3 weeks for bulk orders.
5.What is your MOQ?
A: 100PCS
6.If there is defective product,how do you deal with it?
A:We will reissue it in the next order.
7.How do you control the quality?
A: We make inspection three times before delivery.
8.How to guarantee after sale?
A : We supply 1 year products warranty. If the item is found to be defective in warranty, please contact us as soon sa possible, so that we can help to solve the problem at fastes rate : send back to our factory for repairing, or we send new one for you.
9.How to proceed an order for products?
A. 1. let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
