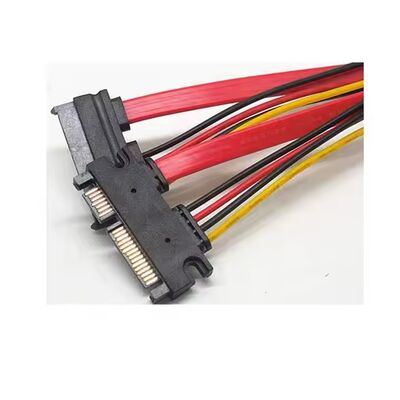

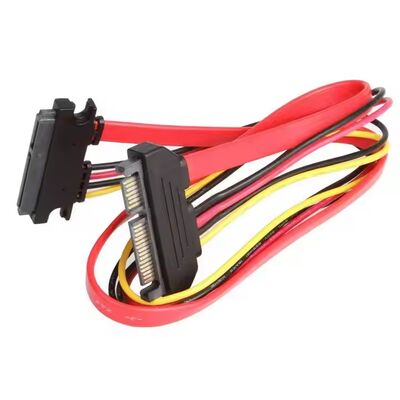

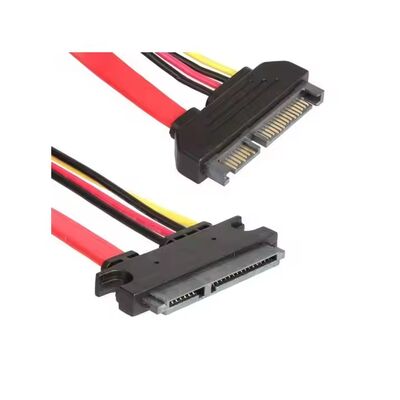

Factory Priced SATA 22pin Male Female Extension Cable Power Data Combo Connector for Computer Use
| Brand Name: | HJX |
| Model Number: | HJX-CS016 |
| MOQ: | 1000 pieces |
| Price: | $0.62 / piece |
SATA7+15P extension cable
1. Interface: (7+15) 22 pin SATA male, (7 +15) 22 pin SATA Female.
2. Connects any Serial ATA drive to standard internal power connector.
3. SATA data cable + SATA power cable, two wires are combined into one.
4. Thin and flexible cabling allows easy routing, easy to plug and unplug,.
5. One male and one female SATA7+15P connected extension cable can be used for external hard disk.
SATA cable
1. SATA 7+15P cable
2. 7+15P female to 7+15P male
3. Housing: PBT, LCP
4. Terminal: Phosphor Bronze
5. Signal Wire: UL2725 26 / 28 AWG, Tinned Copper
6. Power Cable: UL1007 18 / 20 AWG, Tinned Copper
Electrical
1. Hi-Pot Test: DC300V
2. Insulation Resistance: 10M Ohms (Min)
3. Contactor Resistance: 1 Ohms (Max)
4. 100% Open Short and Miss Wire Test
Mechanic
1. Insertion Force: 45N Max
2. Withdrawal Force: 15N Min
3. Operating Temperature: -25 to 85 Celsius degree
4 Transfer Rate: supports 6.0Gbps
Packing:
1. Normal PE bag if no request. Options for packaging: Blister bag, Polybag, Hot seal bag, loop hook bag and zip bag. Out packing is strong carton box.
2. Carton size: 39*33*24cm
Delivery:
Small package sending by courier (TNT, UPS, FedEx, DHL or Aramex) with delivery time about 7~14 days.
Large order shipping by Sea LCL or FCL. Shipping time takes about 35~45 days.
Q1: Are you manufacturer or trading company?
A:We are Professional Electronics Products Manufacturer for USB Cables, Lan cables, Wireharness, Audio cable, HDMI and SATA cables And Others with EOM / ODM Services.
Q2: Can I get samples?
A:Yes,we can offer samples
Q3: Can our logo be printed on your products?
A:Yes.
Q4: What is your delivery time?
A: 3~5 days for sample order,2~3 weeks for bulk orders
Q5: If there is defective product,how do you deal with it?
A:We will reissue it in the next order.
Q6: How do you control the quality?
A: We make inspection three times before delivery
Q7: How to guarantee after sale?
A : We supply 1 year products warranty. If the item is found to be defective in warranty, please contact us as soon sa possible, so that we can help to solve the problem at fastes rate : send back to our factory for repairing, or we send new one for you.
