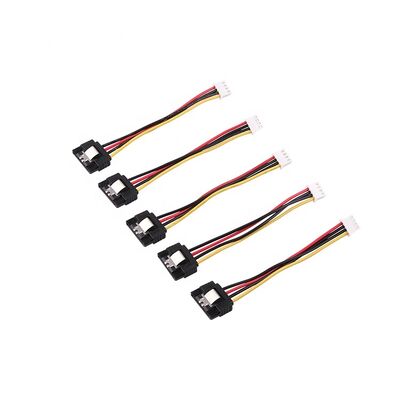

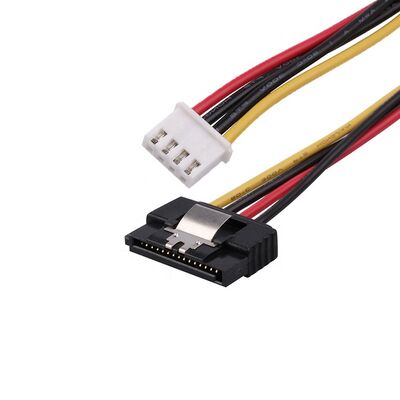

HJX SATA15P to 4P HSG Power Cable with Latch Gold Flash Connectors 90mm PVC Material in Stock
| Brand Name: | HJX |
| MOQ: | 2000 pieces |
| Price: | $0.30-0.31 / piece |
Product Description:
| INNER MOULD | 45P PVC COLOR:BLACK UL94V-0 |
| OUTER MOULD | 45P PVC COLOR:BLACK UL94V-0 |
| CONN | SATA 15PIN BLACK GOLD FLASH WITH LATCH |
| LATCH | SATA 15P LATCH |
| WIRE | 18AWG COPPER YELLOW |
| WIRE | 18AWG COPPER BLACK |
| WIRE | 18AWG COPPER RED |
| HOUSING | 4P HOUSING, PH=2.50MM, INSUATION WHITE |
| TERMINAL | PH2.50MM |
TEST:
1.HI-POT TEST: DC 300V/10MS
2.INSULATION RESISTANCE: 10M OHMS(MIN).
3.CONDUCTIVE RESISTANCE: 1OHMS(MAX).
4. ALL CABLE 100% OPEN SHORT & MISS WIRE TEST.
