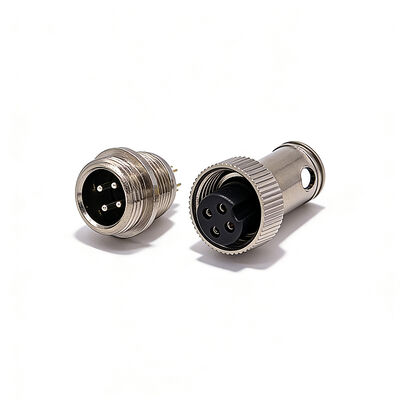

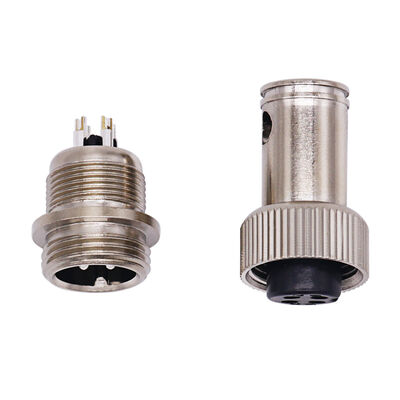

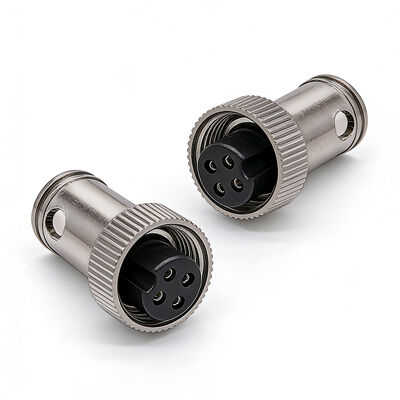

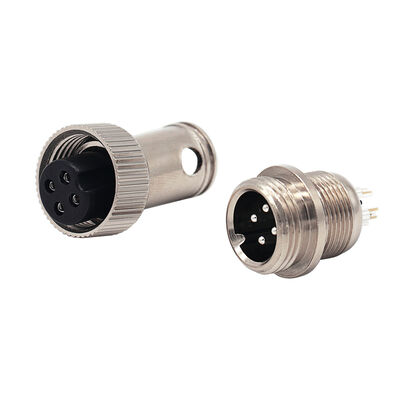

GX12 4 Pin Aviation Connector Plug Socket 4 Pin Male & Female Circular connectors
| Model Number: | GX12 4P Aviation Connector |
| MOQ: | 1000pcs |
GX12 4 Pin Aviation Connector Plug Socket 4 Pin Male & Female Circular connectors
Product type: 4 pin male/female panel connector aviation plug
Model: GX12;
Connector type: DIN male/female;
Number of pins: 4;
Material: Zinc alloy nickel plated+ABS+Copper;
Mounting type: Soldering;
Shape: Stragiht;
Color: Silver
Specifications: Hole diameter: 12mm;
Working temperature: -50℃~70℃
Applications: Widely used for aviation devices, computer, navigation, space light, microphone, scooter charger, camera, radio cables and so on.
Notes:
1) Materials:
Terminal: Brass H59 nickel base 50u" silver plated 30u"
Main body: Black PA66 + GF 94V-0
Shell: Brass H59 nickel 80u"
2) Insertion and removal force of male-female plugs: 50N (Max), Pull-out force: 10N (Min)
3) Insertion resistance of male-female plugs: 5m (Max)
4) Salt spray for 24 hours
